Integrated Energy Storage System

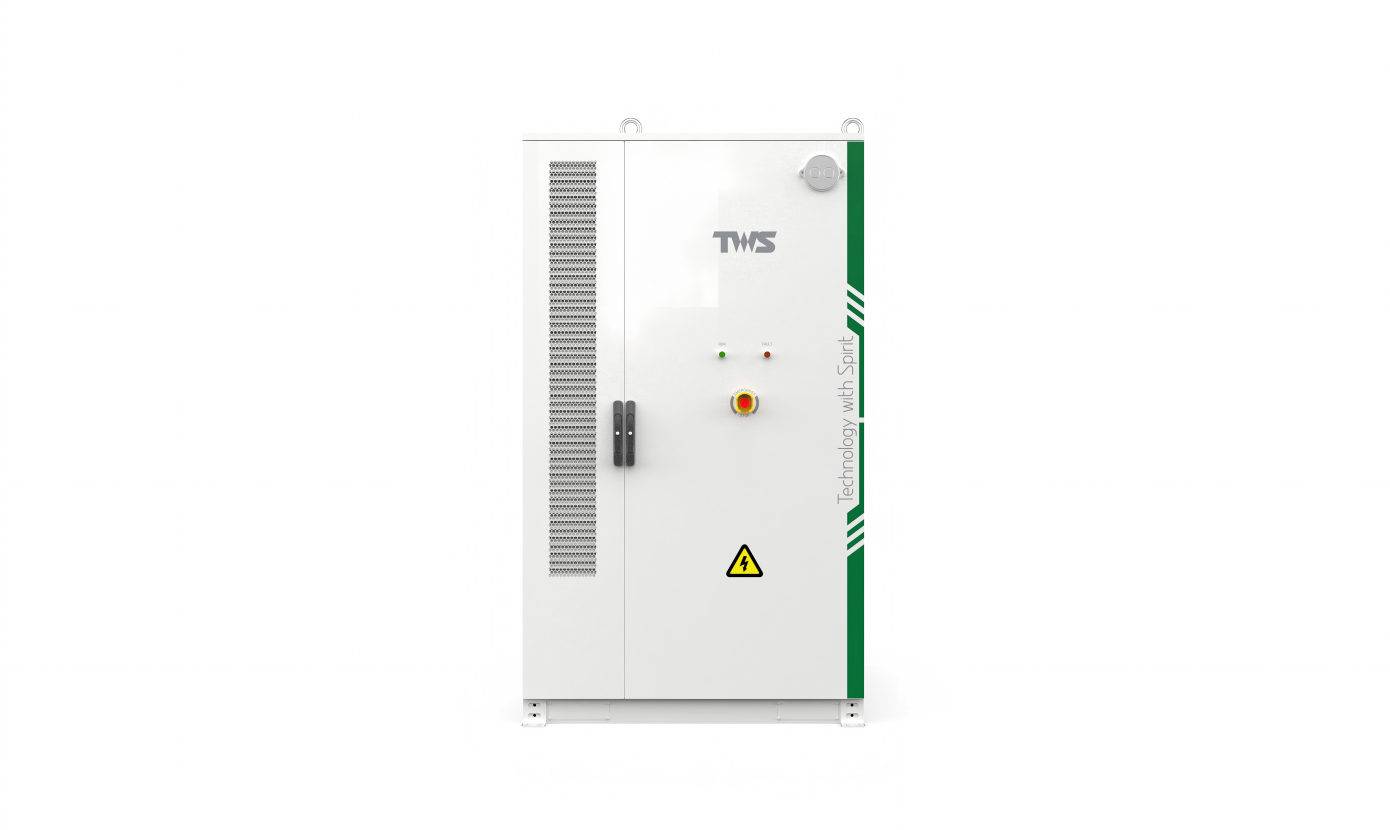

ProeM315 Outdoor Liquid-cooling Energy Storage Cabinet

Low Costs:Modular design ESS for easy transportation, operations,and maintenance; All pre-assembled, no site installation.

Safe and Reliable:Intelligent monitoring and linkage actions ensure battery system safety; Integrated cooling system for thermal safety and enhanced performance and reliability.

Efficient and Flexible: High-efficiency liquid cooling technology with the temperature difference ≤3℃; Modular design supports parallel connection and easy system expansion.

Wide Application:All-in-one powerhouse, adaptable for commercial &industrial use, PV+storage, backup power, and micro-grids；Powers all scenarios, effortlessly transitioning from grid-connected to off-grid operation.

Low Costs

Safe and Reliable

Efficient and Flexible

Wide Application

Technical parameters

Identify different items

Cell parameters

Cell type	LFP	LFP	LFP	LFP	LFP
Cell capacity	315 Ah	315 Ah	315 Ah	315 Ah 315 Ah

Pack Parameters

Cell conﬁguration	1P52S	1P52S	1P52S	1P52S	1P52S
Pack rated voltage	166.4 V	166.4 V	166.4 V	166.4 V	166.4 V
Pack energy	52.416 kWh	52.416 kWh	52.416 kWh	52.416 kWh	52.416 kWh

Cabinet parameters

System battery configuration	1P208S	1P260S	1P312S	1P364S	1P416S
PACK qty	4	5	6	7	8
Rated energy (BOL) at DC side	209 KWh	262 KWh	314 KWh	366 KWh	419 KWh
System output voltage range	582.4-738.4 Vdc	728.0-923.0 Vdc	873.6-1107.6 Vdc	1019.2-1292.2 Vdc	1164.8-1476.8 Vdc
Rated for charging and discharging	≤0.5P	≤0.5P	≤0.5P	≤0.5P	≤0.5P
Dimensions (HWD)	230013001350 mm	230013001350 mm	230013001350 mm	230013001350 mm	230013001350 mm
Weight	2160 kg	2500 kg	2840 kg	3180 kg	3520 kg
Anti-corrosion grade	C4-M	C4-M	C4-M	C4-M	C4-M
Operating ambient humidity	0%～95% (non-condensing)	0%～95% (non-condensing)	0%～95% (non-condensing)	0%～95% (non-condensing)	0%～95% (non-condensing)
Operating ambient temperature	-20℃~55℃	-20℃~55℃	-20℃~55℃	-20℃~55℃	-20℃~55℃
Max. working altitude	4000 m	4000 m	4000 m	4000 m	4000 m
Cooling method	Liquid-cooling	Liquid-cooling	Liquid-cooling	Liquid-cooling	Liquid-cooling
Fire safety configuration	Aerosol+combustible gas detection+ventilation+water extinguishing system	Aerosol+combustible gas detection+ventilation+water extinguishing system	Aerosol+combustible gas detection+ventilation+water extinguishing system	Aerosol+combustible gas detection+ventilation+water extinguishing system	Aerosol+combustible gas detection+ventilation+water extinguishing system
Communication interface	LAN	LAN	LAN	LAN	LAN
Communication protocol	Modbus TCP	Modbus TCP	Modbus TCP	Modbus TCP	Modbus TCP
Certifications	IEC62619, IEC63056, IEC62477, EN ICE61000,UL9540A, UL1973, UN38.3	IEC62619, IEC63056, IEC62477, EN ICE61000,UL9540A, UL1973, UN38.3	IEC62619, IEC63056, IEC62477, EN ICE61000,UL9540A, UL1973, UN38.3	IEC62619, IEC63056, IEC62477, EN ICE61000,UL9540A, UL1973, UN38.3	IEC62619, IEC63056, IEC62477, EN ICE61000,UL9540A, UL1973, UN38.3
