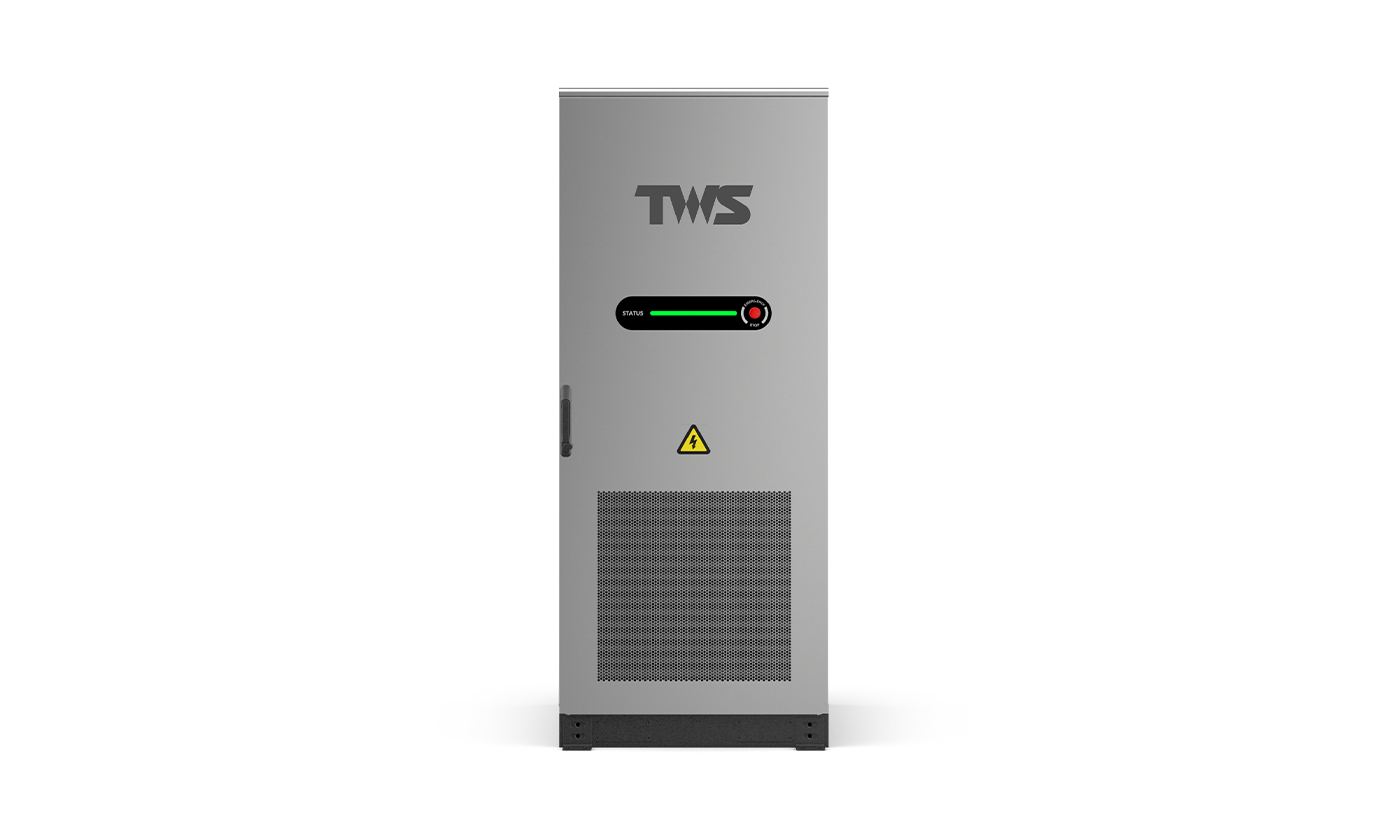

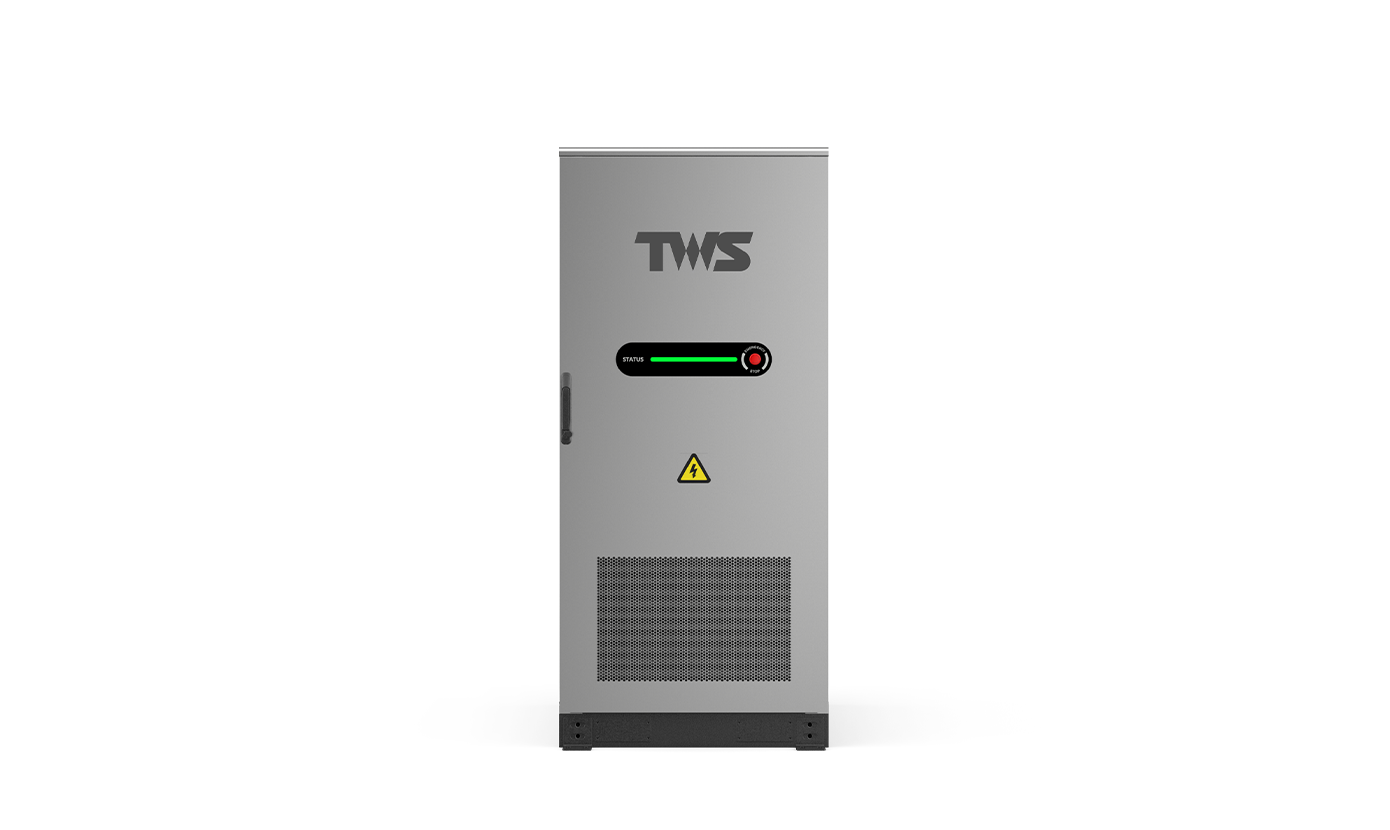

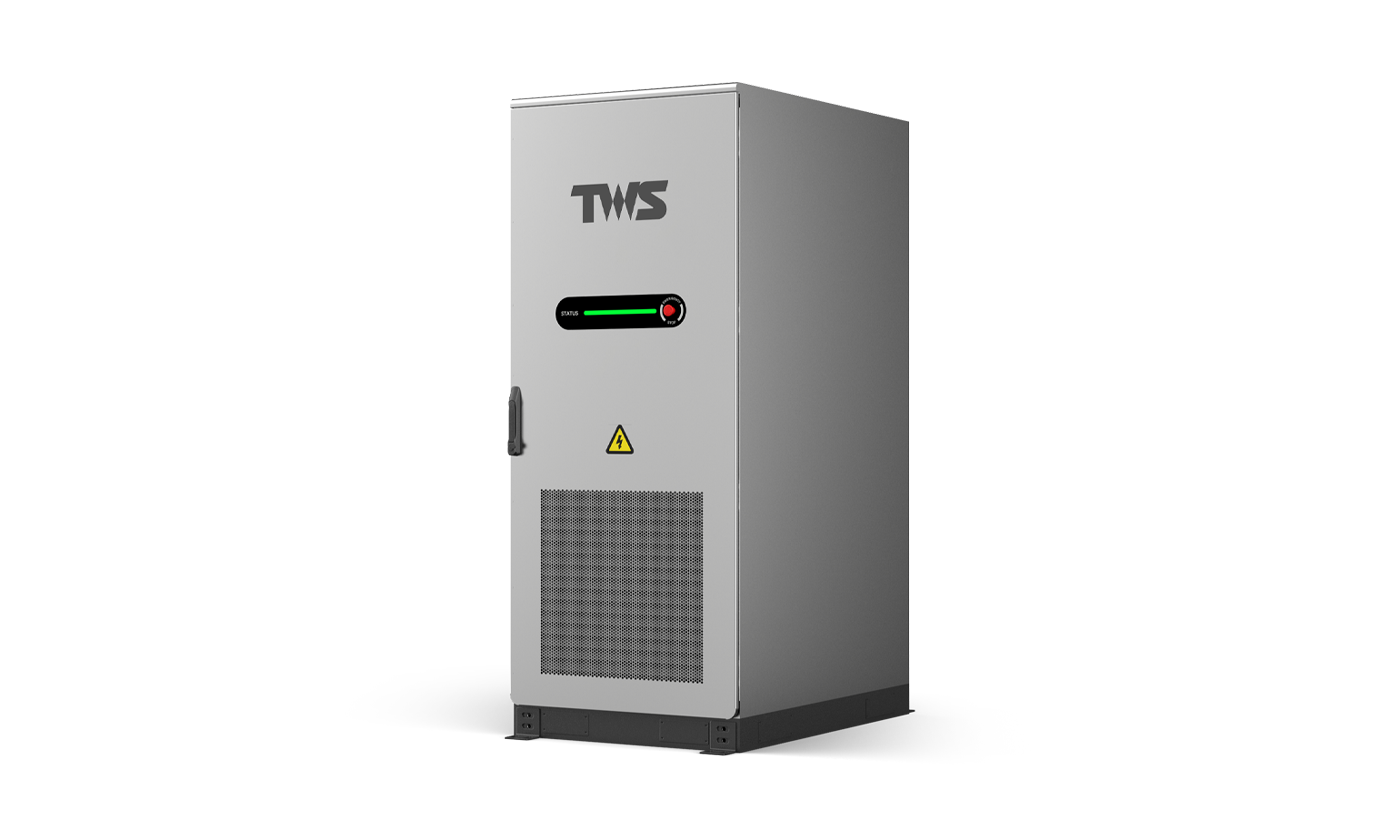

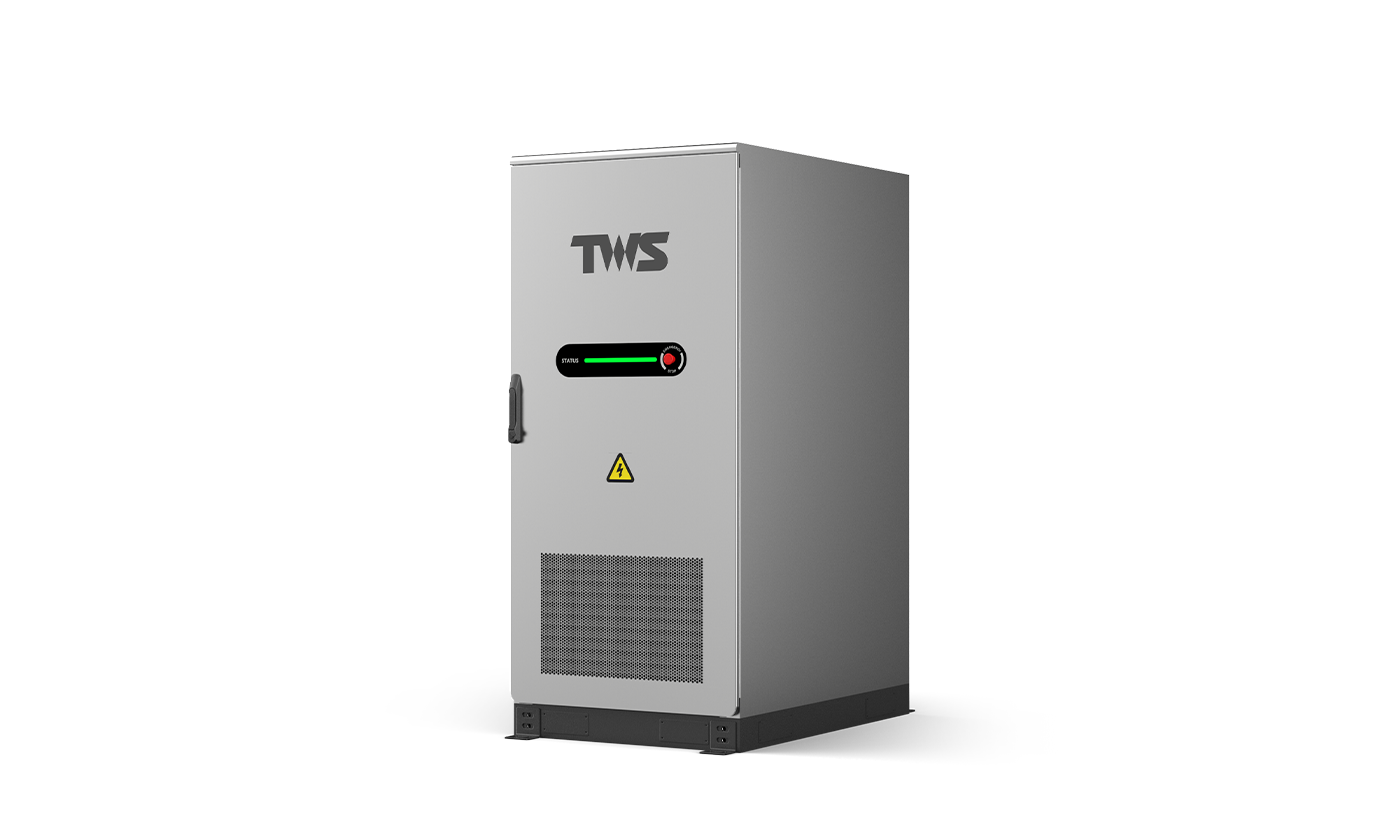

Max-Pro & Max-Classic C&I Outdoor Liquid-cooling Energy Storage Cabinet 262 kWh

Small size, big energy: Occupying 1.28 square meters,with 21% greater energy density.
Good-quality cells assure trustworthy products: 315 Ah cells feature superb safety,long life cycle,and high energy efficiency;Battery cell efficiency≥95%.
Smart and user-friendly: Accessible to the cloud platform for remote monitoring;Smart and wireless; remote upgrade.
Modular design; easy power station construction: Multiple cabinets connected in parallel side by side; centralized control;EMS generates optimal operation strategy;pre-commissioning in factory; plug and play on site.
Adaptive to harsh environments: Free from impacts of extreme cold and heat;Intelligent dehumidification inside cabinets to eliminate condensing risks.

Good-quality cells assure trustworthy products
Smart and user-friendly
Modular design; easy power station construction
Adaptive to harsh environments
Technical parameters
Identify different items
Cell parameters
Product Model Max-Pro Max-Classic
Type LFP 315 Ah LFP 315 Ah
Cell configuration 1P260S 1P260S
Rated energy at DC side 262 kWh 262 kWh
Voltage range 650 V~949 V 650 V~949 V
PCS parameters
Product Model Max-Pro Max-Classic
Rated output power 125 kW There is no pcs inside.
Max.output power 138 kW There is no pcs inside.
THDi <2% (rated power) There is no pcs inside.
Rated power grid voltage 230 Vac/400 Vac There is no pcs inside
Allowable voltage deviation -15%~+15% There is no pcs inside.
Max. current 200 A There is no pcs inside.
Rated power grid frequency 50 Hz/60 Hz (which can be set) There is no pcs inside.
DC component <0.5% There is no pcs inside.
Overload capacity 110% long-term There is no pcs inside.
System parameters
Product Model Max-Pro Max-Classic
Dimensions (W*D*H) 950 mm*1400 mm*2330 mm 950 mm*1400 mm*2120 mm
Weight 2600 kg 2400 kg
Level of protection IP55 IP55
Auxiliary power supply Self-powered External power supply
Anti-corrosion grade C4-M C4-M
Operating humidity range 0%~95%(non-condensing) 0%~95%(non-condensing)
Operating temperature range -30°C~55°C (derated when the operating temperature is over 45°C) -30°C~55°C (derated when the operating temperature is over 45°C)
Max. operating altitude 4000 m(derated when the operating altitude is over 2000 m) 4000 m(derated when the operating altitude is over 2000 m)
Cooling method Liquid-cooling Liquid-cooling
Fire protection Aerosol+ fire water system Aerosol+ fire water system
Communication interface LAN LAN
Communication protocol Modbus TCP Modbus TCP
Certifcation IEC62619, IEC63056, IEC62477, IEC62933, EN61000, UL9540A, UN38.3 IEC62619, IEC63056, IEC62477, EN61000, UL1973, UL9540A, UN38.3
