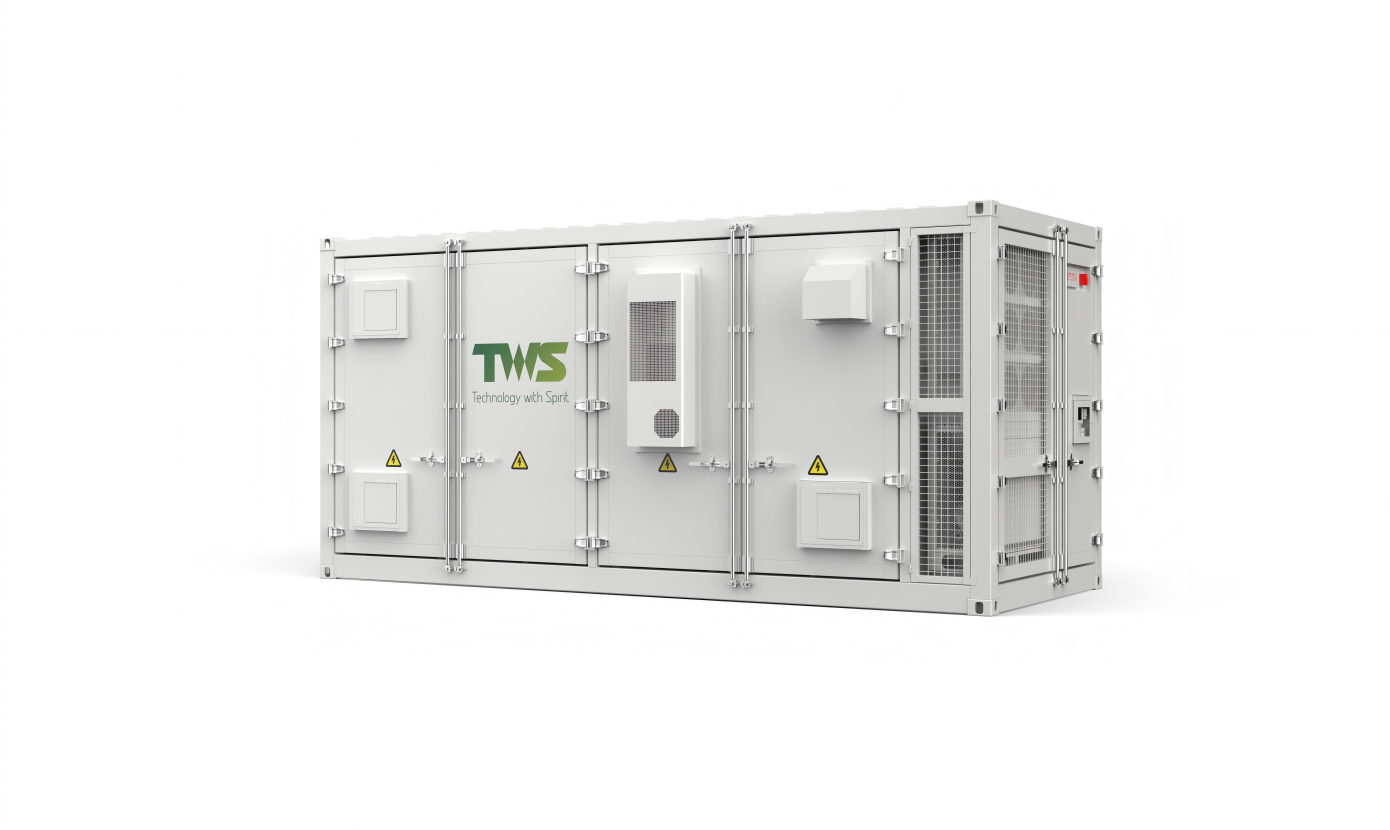

PowerCore Liquid-cooling Energy Storage Container 5 MWh

Superb safety: Triple fire protection measures guarantee early detection, accurate spraying, and rapid fire suppression throughout the entire process; Big data intelligent fire monitoring system features panoramic surveillance and fire risk warning;Risks spotted in advance, and rapid response taken across the system.
High economic efficiency:315 Ah LFP cells with high energy density and prolonged cycle life realize a cost reduction per kWh of 30%; 5MWh in one 20ft container; side-by-side arrangement; Saving over 40% of the project area.
Increasing flexibility: Flexible system topology for various scenarios, including the power generation side, grid side, and user side; Modular design enables flexible capacity and configuration.

Superb safety
High economic efficiency
Increasing flexibility
Technical parameters
Identify different items
Cell parameters
Product Model PowerCore
Cell type LFP
Cell capacity 315Ah
Pack parameters
Product Model PowerCore
Cell configuration 1P104S
Pack rated voltage 332.8V
Pack rated energy 104.832kWh
Rack parameters
Product Model PowerCore
Rack battery configuration 1P416S
Pack qty 4
Rack rated energy 419.328kWh
System paramerers
Product Model PowerCore
System battery configuration 12P416S
Rated energy(BOL) at DC side 5031 kWh
System output voltage range 1040 Vdc~1500 Vdc
Rate for charging and discharging ≤0.5 P
Dimensions (W*H*D) 20 ft (6058 mm*2896 mm*2438 mm)
Weight ≤44000 kg
Level of protection IP55
Anti-corrosion grade C4
Operating humimidity range 0%~95% (non-condensing)
Operating temperature range -30℃~55℃ (derated when the operating temperature is over 45℃)
Max.operating altitude 4000 m (derated when the operating altitude is over 2000m)
Cooling method Liquid-cooling
Fire protection Aerosol+temperature detector+smoke detector+audible and visual alarm+fire water system
Communication interface LAN
Communication protocol Modbus TCP
Certification IEC62619, IEC63056, IEC62477, EN61000, UL1973, UL9540A, KC, UN38.3
